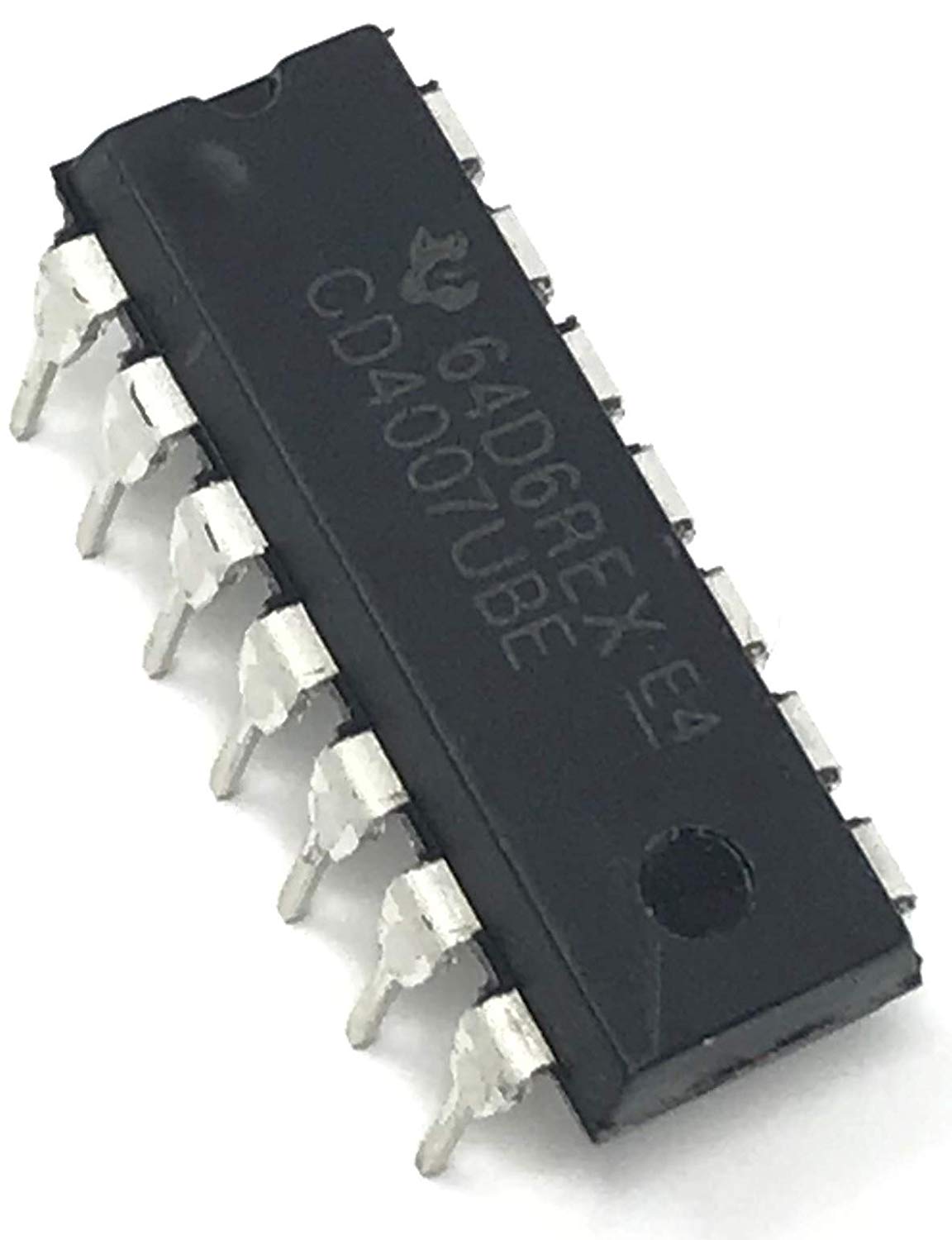

CD4007
Dual
Complementary MOSFET
|
 |
This page is dedicated to the CD4007 chip. I will add various circuits that be realized using the CD4007 CHIP.
General Description
The CD4007 chip consists of three complementary pairs of N- and P-channel
enhancement mode MOS transistors.
The CD4007 was originally made for digital purposes to realize logic circuits
such as inverter, NAND and NOR. But as the pins on transistors are easily
accecible they can be also used to realize analog circuits. Below you will
find a selection of circuit realized using the CD4007.
|
-
-
Amplifiers
-
Oscillators
-
Schmidt triggers
-
Digital Logic Circuits
Resources:
https://analog-staging.dw1.cosmocode.de/university/courses/alm1ks/alm-lab-28
Silveira, M A G & Santos, Roberto & Medina, N.H. & F.G.Cunha, & F.G.Leite, & K.H.Cirne, & Added, N. & Aguiar, Valéria. (2013). Radiation Effect Mechanisms in Electronic Devices. 10.22323/1.194.0077.
